製品詳細
起源の場所: 中国
ブランド名: DOPRO
証明: CE ISO
Model Number: DPAE8000
支払及び船積みの言葉
最小注文数量: 1
価格: 50-500
Packaging Details: WOODEN BOX
Delivery Time: 5-10DAYS
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000PCS MONTH
Warranty: |
1 Year, |
色: |
黄色,顧客要求,任意の色,黒,白 |
Application: |
Mining,Crawler Excavator,Construction,breaking stone,etc |
販売後サービス: |
オンラインサポート,ビデオ技術サポート,無料のスペアパーツ,現地整備・修理サービス,現地設置 |
Material: |
42CrMo,Steel,20CrMo,NM360/400,40CrNiMo |
Chisel diameter: |
45mm,35-195mm,40 - 210 mm,53mm,68-255mm |
体重: |
130kg,158kg,80〜4000kg,53〜6500kg,1000kg |
Condition: |
100%new,100% new,durable,long life |
Name: |
hydraulic breaker for backhoe loader,Hydraulic hammer rock breaker for excavator,silenced type road construction hydraulic breaker for mini excavator,Hydraulic breaking hammer |
Part name: |
broken hammer,Hydraulic hammer rock breaker,Measuring Meter,Rock Breaker /Mini Hydraulic Hammer for Excavator and Wheel Loader |
Product name: |
Soosan Hydraulic Breaker,Hydraulic Hammer Rock Breaker,Hammer For Excavator,excavator hydraulic tool hydraulic breaker with hs code |
Oem: |
yes,Avaliable |
System: |
hydraulic-system,Hydraulic-Gas Power,Hydraulic-gas System |
Hs code: |
84314100,8412210000 |
Oem/odm: |
Available,Acceptable |
適した掘削機: |
4~16トン,3~7トン |
Warranty: |
1 Year, |
色: |
黄色,顧客要求,任意の色,黒,白 |
Application: |
Mining,Crawler Excavator,Construction,breaking stone,etc |
販売後サービス: |
オンラインサポート,ビデオ技術サポート,無料のスペアパーツ,現地整備・修理サービス,現地設置 |
Material: |
42CrMo,Steel,20CrMo,NM360/400,40CrNiMo |
Chisel diameter: |
45mm,35-195mm,40 - 210 mm,53mm,68-255mm |
体重: |
130kg,158kg,80〜4000kg,53〜6500kg,1000kg |
Condition: |
100%new,100% new,durable,long life |
Name: |
hydraulic breaker for backhoe loader,Hydraulic hammer rock breaker for excavator,silenced type road construction hydraulic breaker for mini excavator,Hydraulic breaking hammer |
Part name: |
broken hammer,Hydraulic hammer rock breaker,Measuring Meter,Rock Breaker /Mini Hydraulic Hammer for Excavator and Wheel Loader |
Product name: |
Soosan Hydraulic Breaker,Hydraulic Hammer Rock Breaker,Hammer For Excavator,excavator hydraulic tool hydraulic breaker with hs code |
Oem: |
yes,Avaliable |
System: |
hydraulic-system,Hydraulic-Gas Power,Hydraulic-gas System |
Hs code: |
84314100,8412210000 |
Oem/odm: |
Available,Acceptable |
適した掘削機: |
4~16トン,3~7トン |

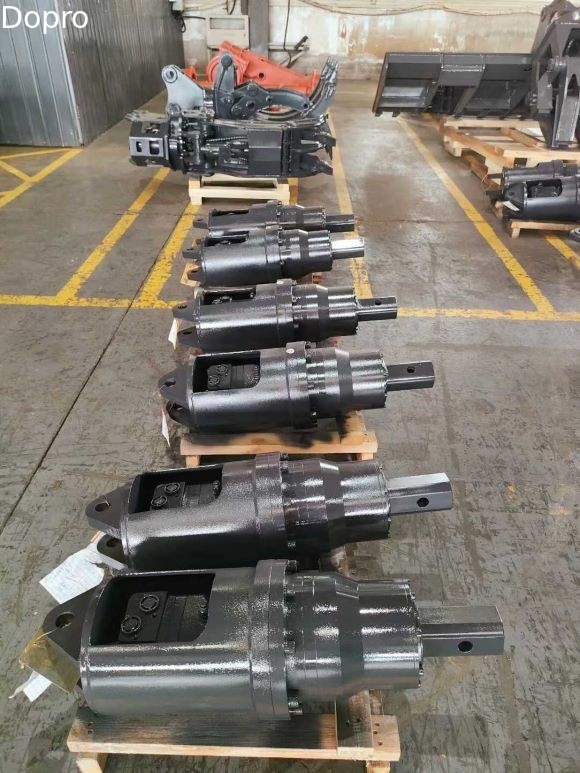

Excavator Drilling Attachment Ground Driller Earth Drilling Auger
we are an excavator attachment manufacturer with15 years of production experience, thank you for your choice, we very much welcome your letters and calls, we will reply your questions as soon as possible, welcome to visit our factory !
Auger Drive 18000N for 8-15t Excavator. In the cutting head and teeth, we use wear-resistant and hard materials, so that the cutting head can cope with long-term work and tough conditions.
18 Month After-sales service for Aauger Drive
1. Hose&Couplers Option: All earth auger drills come standard with high quality hose and couplers.
2. Eaton Motor: Developing the most reliable attachments .
3. ERICYLIC Gearbox: Unique planetary gearbox.Multiplied output torque.Extreme efficiency
4. NON-dislodgement Shaft: Assembled top down locked into earth drill house.Never fall out.Provided a safer environment
It fit to rock, pitch or a lot of gravel land.Harder than tungsten type.
Raymond Auger suit for Clay, Sand, Soil Land, Decomposed rock Type, Gravel Type, Asphalt and so on.
| TECHNICAL PARAMETERS | |||||||
| Name | Unit | DPAE2000 | DPAF2500 | DPAE3000 | DPAE3500 | DPAF4500 | DPAE5000 |
| Part No | 102000 | 102500 | 103000 | 103500 | 104500 | 105000 | |
| Carrier | T | 1~2.5 | 1.5~3 | 2~3.5 | 2.5~4.5 | 3~5 | 4.5~7 |
| MaxTorque | N.m | 1871 | 2432 | 2877 | 3614 | 4218 | 5056 |
| Pressure | Bar | 205 | 205 | 240 | 240 | 240 | 240 |
| Oil Fow Range | l/min | 23~53 | 30~61 | 30~61 | 30~68 | 38~76 | 38~76 |
| Rotary Speed | rpm | 40~92 | 40~82 | 40~81 | 32~72 | 32~64 | 29~58 |
| Hydraulic Hose | Inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Output Shaft | mm | 065 | 065 | 065 | 065 | 065 | 075 |
| UnitWeight | Kg | 50 | 51 | 75 | 76 | 77 | 110 |
| Unit Height | mm | 595 | 595 | 700 | 700 | 700 | 780 |
| Unit Max.Dia | mm | 200 | 200 | 244 | 244 | 244 | 269 |
| Auger Series | mm | S4 | S4 | S4 | S4 | S4 | S5 |
| AugerLength | mm | 1200 | 1200 | 1200 | 1200 | 1200 | 1500 |
| Drill Dia.Range | mm | 100~400 | 100~500 | 100~600 | 100~750 | 100~900 | 150~600 |
| Name | Unit | DPAE5500 | DPAE6000 | DPAE⁷000 | DPAE8000 | DPAE10000 | DPAE12000 |
| PartNo | 105500 | 106000 | 107000 | 108000 | 110000 | 112000 | |
| Carrier | T | 5~7 | 6~8 | 7~10 | 8~12 | 10~13 | 13~17 |
| MaxTorque | N.m | 5910 | 6150 | 6931 | 8048 | 10778 | 11976 |
| Pressure | Bar | 240 | 240 | 240 | 240 | 240 | 240 |
| Oil Flow Range | l/min | 45~83 | 45~106 | 61~121 | 61~136 | 70~136 | 80~140 |
| Rotary Speed | rpm | 28~50 | 34~80 | 37~72 | 29~64 | 26~45 | 22~43 |
| Hydraulic Hose | Inch | 1/2 | 3/4 | 3/4 | 3/4 | 3/4 | 1 |
| Output Shaft | mm | 075 | 075 | 075 | 075 | 075 | 075 |
| Unit Weight | Kg | 112 | 128 | 130 | 132 | 167 | 167 |
| Unit Height | mm | 780 | 850 | 850 | 850 | 930 | 930 |
| Unit Max.Dia. | mm | 269 | 269 | 269 | 269 | 290 | 290 |
| Auger Series | mm | S5 | S5 | S5 | S5 | S6 | S6 |
| AugerLength | mm | 1500 | 1500 | 1500 | 1500 | 1750 | 1750 |
| Drll Dia.Range | mm | 150~750 | 150~900 | 150~900 | 150~900 | 150~900 | 150~900 |
